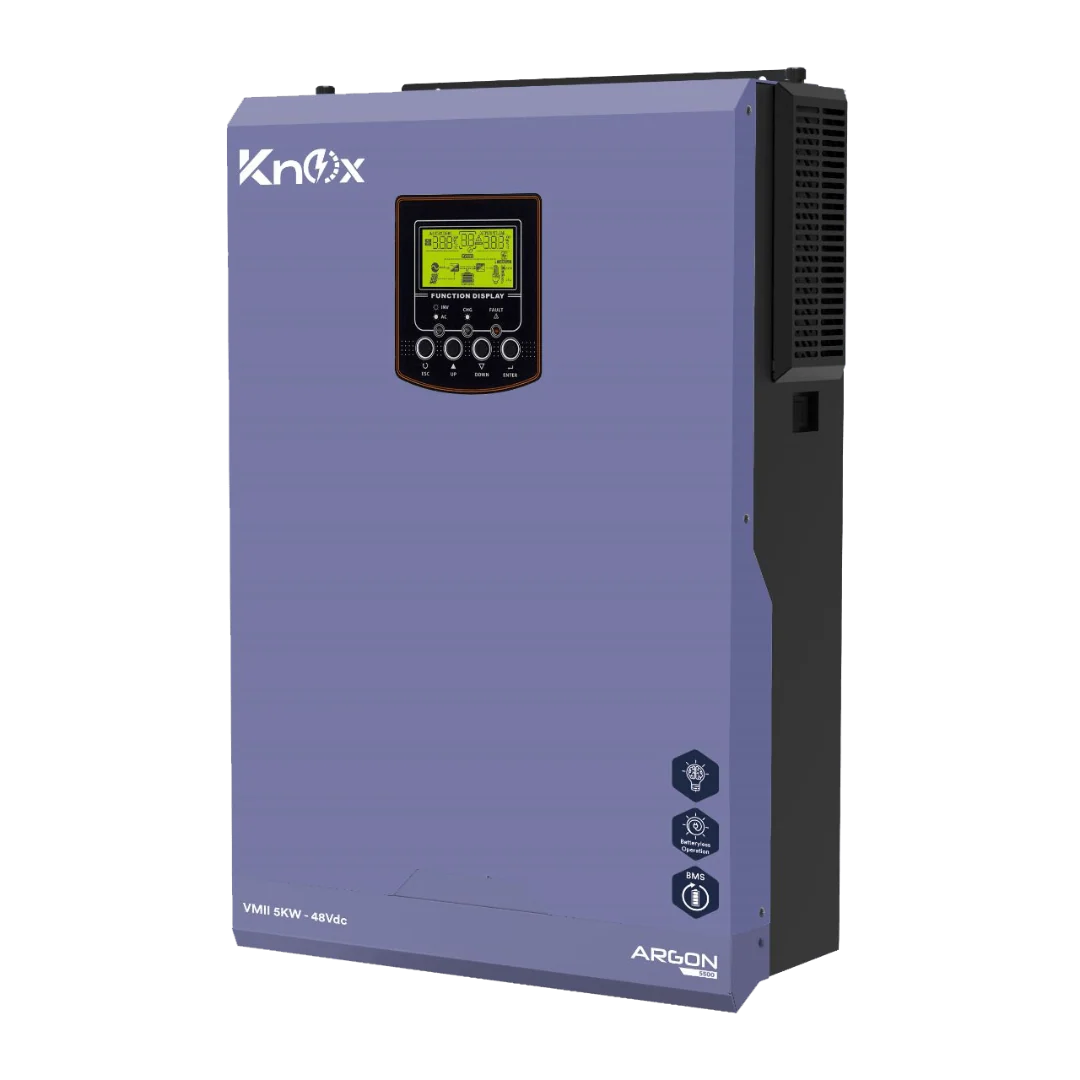

Knox Argon VM II 6000 5KW Off Grid Solar Inverter With PV 6000W

Knox Argon VM II 6000 5KW Off Grid Solar Inverter With PV 6000W

  • 1 Year Complete + 10 Year’s Service Warranty
  • Estimated Shipping Time: 48 to 72 Hours
  • You have to pay in full in Advance for Order Confirmation
  • Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.
  • Heavy-weight parcels will be dispatched through Cargo Service
    The customer will pay Cargo charges on delivery.

Original price was: ₨ 155,000.Current price is: ₨ 106,000.

Description:

Knox Argon VM II 6000 5KW Off-Grid Solar Inverter with PV 6000W

The Knox Argon VM II 6000 is a reliable off-grid solar inverter designed for efficient power management in off-grid solar systems. With its IP21-rated design, it is ideal for indoor installations, offering easy monitoring and installation.

Key Features

  • IP21-rated Design for Indoor Use: Ensures reliable performance in protected indoor environments, safeguarding the inverter from dust and water splashes.
  • 6000W PV Input: Supports bifacial solar panel output, maximizing energy generation and efficiency from the solar array.
  • Wide MPPT Voltage Range (120 – 450V): Offers flexibility in solar panel selection and ensures optimal power conversion for various configurations.
  • Quick & Easy Installation: Designed for easy setup with standard tools, making the installation process straightforward.
  • Easy Commissioning & Monitoring: Features an LED screen on the inverter for live monitoring, allowing easy access to system performance and settings.

The Knox Argon VM II 6000 is a great choice for off-grid solar systems, offering durability, flexibility, and efficient power conversion with user-friendly features.

Technical Data Sheet:

Rated Power 5000VA/5000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 10000VA
Efficiency (Peak) 93%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum PV Array Power 6000W
MPP Range @ Operating Voltage 120 ~ 450VDC
Maximum Solar Charge Current 100A
Maximum AC Charge Current 100A
Maximum Charge Current 100A
PHYSICAL
Dimension, D x W x H (mm) 120 x 300 x 440
Net Weight (kgs) 10
Communication Interface RS232/RS485, optional WiFi
ENVIRONMENT ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
