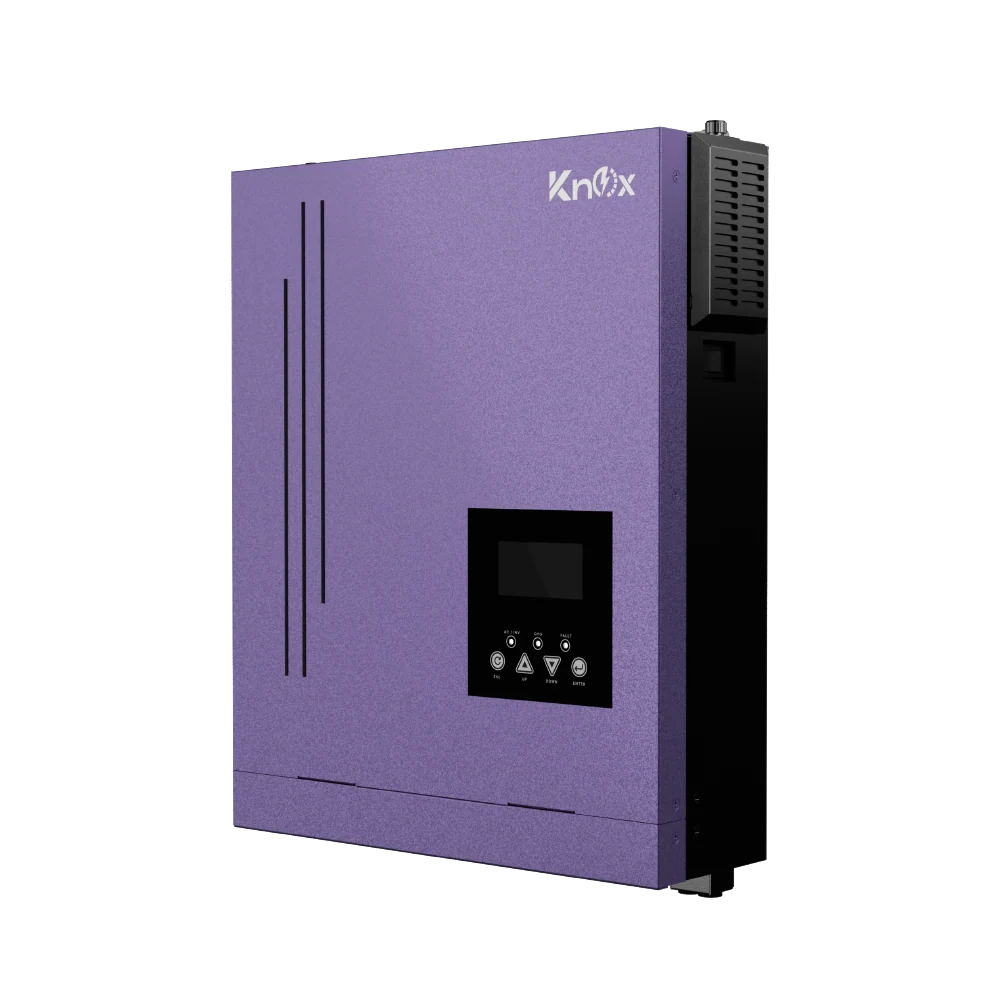

Knox Krypton Eco 4000 | 3KW Hybrid Solar Inverter with 4000W PV

Knox Krypton Eco 4000 | 3KW Hybrid Solar Inverter with 4000W PV

  • 1 Year Brands Warranty
  • Estimated Shipping Time: 48 to 72 Hours
  • You have to pay in full in Advance for Order Confirmation
  • Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.
  • Heavy-weight parcels will be dispatched through Cargo Service
    The customer will pay Cargo charges on delivery.

₨ 80,000

Description:

Power your home or business with the Knox Krypton Eco 4000, a reliable 3KW hybrid solar inverter designed for maximum energy efficiency and performance. Enjoy batteryless operation, grid feeding, and an advanced battery management system — all in a compact, intelligent design. Perfect for modern solar setups, this inverter ensures uninterrupted power with intelligent load management, even in demanding conditions.

Key Features:

  • 3KW pure sine wave hybrid inverter with 4000W PV support
  • Batteryless operation with seamless grid-tied functionality
  • Integrated Battery Management System (BMS) for longer battery life
  • Intelligent load management to optimize energy usage
  • Feed into the grid capability for maximizing solar investment
  • Built-in anti-dust kit for durability and extended lifespan
KNOX SERIES Krypton Eco 4000
MODEL 3kW-24-pV4000
Rated Power 4000VA/4000W
Battery Mode Power 2500W
PV+Bat Output Power 3000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 184 – 264 or 195.5 – 253 VAC
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 6000VA
Efficiency (Peak) 93%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 32 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 450 VDC
Maximum PV Array Power 4000W
MPP Range @ Operating Voltage 30 ~ 400VDC
PV Rated Current 13A
Max. Input Current (Isc) 16A
Maximum Solar Charge Current 80A
Maximum AC Charge Current 80A
Maximum Charge Current 80A
PHYSICAL
Dimension, D x W x H (mm) 95 x 288 x 357
Net Weight (kgs) 7.1
Communication Interface RS232/RS485, optional WiFi
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature | Storage Temperature -10°C to 50°C | -15°C to 60°C
