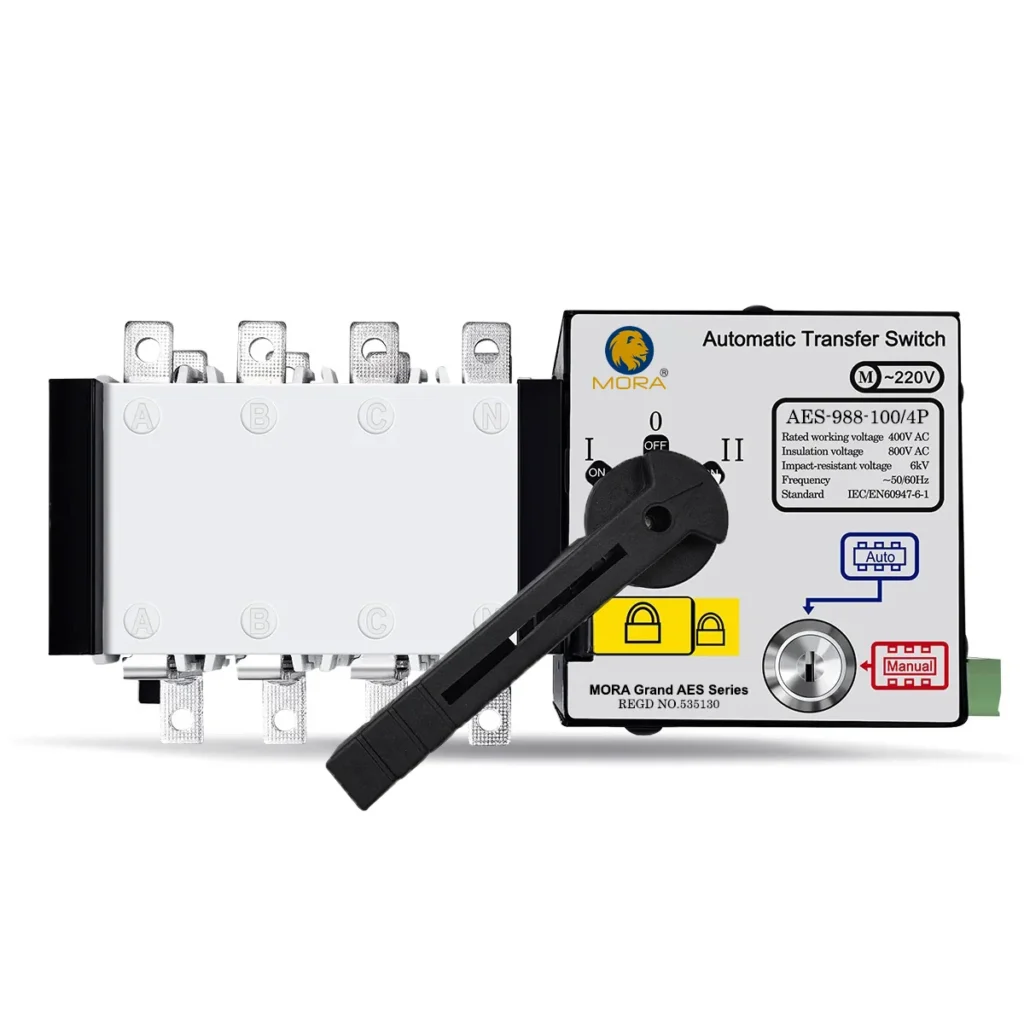

Mora AES-988-100/4P Handle Type 100A 4P AC Three Phase Dual Power Automatic Transfer Switch ATS

MORA AES-988-100/4P | 100A 3-Phase Dual Power Automatic Transfer Switch (ATS)

Fast, Reliable Power Switching for Backup Systems

The MORA AES-988-100/4P Automatic Transfer Switch (ATS) is a high-performance, 3-phase 4-pole dual power switch designed to ensure uninterrupted power supply for homes, businesses, and industrial equipment. With a rated current of 100A and voltage of 400V AC, it offers seamless switching between normal and reserve power sources — all within 2.5 seconds.

 Key Features & Specifications:

• Brand: MORA
• Model: AES-988-100/4P
• Rated Current: 100A
• Rated Voltage: 400V AC (50/60Hz)
• Control Voltage: 220V AC
• Insulation Voltage: 800V AC
• Impulse Voltage Withstand: 6kV
• Switching Time: Less than 2.5 seconds
• Contact Load: High power
• Operation Modes:
  • Automatic Mode: Switches between main and backup automatically
  • Manual Mode: Manual switch operation with front control knob

How It Works:

• Prioritizes Normal Power when available
• If Normal Power fails, automatically switches to Reserve Power
• Does not control generator start/stop – only handles power switching
• Temporary power interruption occurs during switching (<2.5s)

⚠️Note: Ensure critical loads are backed by a UPS if uninterrupted power is required during the 2.5-second switching delay.
